Het samenstellen van Tweelingschroefextruder

ISO9001 Certified Compounding Twin Screw Extruder with Automatic Control System and Multiple Feeding for Granulating

Name: ISO9001 Certified Compounding Twin Screw Extruder with Automatic Control System and Multiple Feeding for Granulating
Brand: Sichuan Advance technology Co.,Ltd
SKU: HE62
Price: 117,000.00 USD
Availability: InStock

Merknaam:	ADVS
Modelnummer:	HE62
MOQ:	1 Instellen
Prijs:	USD 34000-200000
Betalingsvoorwaarden:	T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

ISO9001

Automatische rangschikking:

Automatisch

Voorwaarde:

Nieuw

Service na verkoop verleend:

Ingenieurs beschikbaar voor onderhoud aan machines in het buitenland

Certificering:

ISO9001

Productnaam:

Twin-screw-extruder voor het samenvoegen

type:

Extruder met dubbele schroef

Verpakking Details:

houten kist

Markeren:

ISO9001 certified twin screw extruder

blue standard compounding extruder

granulating twin screw extruder

Productbeschrijving

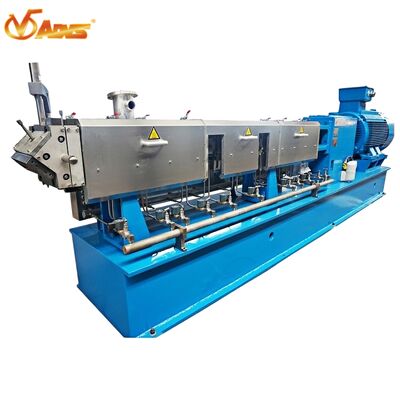

HE62 Series Twin-Screw Granulating Extruder ADVS High Standard

Basic Infromation :

Parameter	Value
Model Number	HE62
Product Type	Granulating Twin-Screw Extruder
Processed Plastic Material	ABS
Feeding Mode	Multiple Feeding
Assembly Structure	Integral Type
Screw Configuration	Twin-Screw, Full Intermeshing, Deep Screw Channel
Exhaust System	Equipped with exhaust function
Control System	Automatic and computerized
Trademark	ADVS
Screw Diameter	43 mm
Transport Package	Heavy-duty wooden crates
Place of Origin	Sichuan, China

Technical datas of HE series high standard extruder :

Model Number	HE27	HE43	HE51	HE58	HE62	HE70	HE77	HE92
Screw Diameter (mm)	27	43	51	58	61.5	70	77	92
L/D Ratio	40	40	40	40	40	40	40	40
Main Drive Motor Power (kW)	37	132	250	355	400	600	650	1000
Maximum Screw Speed (rpm)	1500	1200	1200	1200	1200	1200	1000	900
Specific Torque (Nm/cm³)	11.3	13.9	13.9	13.9	13.9	13.9	13.9	13.9
Center Distance (mm)	22.5	35.5	42	48	50	58.5	63.5	76
OD/ID Ratio	1.54	1.55	1.55	1.55	1.55	1.55	1.55	1.55
Nominal Output Range (kg/h)	20 to 120	220 to 500	700 to 1200	1100 to 1500	1300 to 1800	1700 to 3000	2400 to 4000	3600 to 6600
